ConicalGradient()

Syntax

ConicalGradient(x, y, Angle.f)
Description
Sets the drawing gradient to have a conical shape.

Parameters

x, y The center position of the conical gradient.
Angle.f The angle (in degrees) at which to start the gradient. The gradient starts with the current background color at the given angle and then changes towards the current front color counterclockwise until the angle is reached again.

Return value

None.

Remarks

Additional colors can be added to the gradient with the GradientColor() command.

Note: This command only has an effect with ImageOutput() and CanvasOutput(). The gradient only affects the drawing commands when #PB_2DDrawing_Gradient is set with the DrawingMode() command.

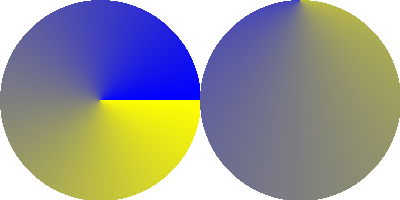

Example

  If OpenWindow(0, 0, 0, 400, 200, "2DDrawing Example", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    If CreateImage(0, 400, 200) And StartDrawing(ImageOutput(0))
      Box(0, 0, 400, 200, $FFFFFF)

      DrawingMode(#PB_2DDrawing_Gradient)
      BackColor($00FFFF)
      FrontColor($FF0000)

      ConicalGradient(100, 100, 0.0)
      Circle(100, 100, 100)
      ConicalGradient(300, 0, 90.0)
      Circle(300, 100, 100)

      StopDrawing()
      ImageGadget(0, 0, 0, 400, 200, ImageID(0))
    EndIf

    Repeat
      Event = WaitWindowEvent()
    Until Event = #PB_Event_CloseWindow
  EndIf

See Also

GradientColor(), ResetGradientColors(), LinearGradient(), CircularGradient(), EllipticalGradient(), BoxedGradient(), CustomGradient(), DrawingMode()

Supported OS

All
