BoxedGradient()

Syntax

BoxedGradient(x, y, Width, Height)

Sets the drawing gradient to have a box shape.

Parameters

x, y, Width, Height

The location of the gradient box. The gradient ranges from the current background color at the center of the box to the current front color at the edges of the box.

Return value

None.

Remarks

Additional colors can be added to the gradient with the GradientColor() command.

Note: This command only has an effect with ImageOutput() and CanvasOutput(). The gradient only affects the drawing commands when #PB_2DDrawing_Gradient is set with the DrawingMode() command.

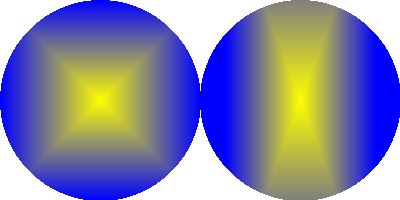

Example

  If OpenWindow(0, 0, 0, 400, 200, "2DDrawing Example", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    If CreateImage(0, 400, 200) And StartDrawing(ImageOutput(0))
      Box(0, 0, 400, 200, $FFFFFF)

      DrawingMode(#PB_2DDrawing_Gradient)
      BackColor($00FFFF)
      FrontColor($FF0000)

      BoxedGradient(0, 0, 200, 200)
      Circle(100, 100, 100)
      BoxedGradient(225, -100, 150, 400)
      Circle(300, 100, 100)

      StopDrawing()
      ImageGadget(0, 0, 0, 400, 200, ImageID(0))
    EndIf

    Repeat
      Event = WaitWindowEvent()
    Until Event = #PB_Event_CloseWindow
  EndIf

See Also

GradientColor(), ResetGradientColors(), LinearGradient(), CircularGradient(), EllipticalGradient(), ConicalGradient(), CustomGradient(), DrawingMode()

Supported OS

All
