LinearGradient()

Syntax

LinearGradient(x1, y1, x2, y2)

Sets the drawing gradient to have a linear shape defined by the two points x1,y1 and x2,y2.

By default the gradient ranges from the current background color at x1,y1 to the current front color at x2, y2. Additional colors can be added to the gradient with the GradientColor() command.

Note: This command only has an effect with ImageOutput(). The gradient only affects the drawing commands when #PB_2DDrawing_Gradient is set with the DrawingMode() command.

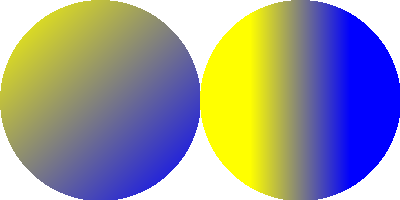

Example:

  If OpenWindow(0, 0, 0, 400, 200, "2DDrawing Example", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    If CreateImage(0, 400, 200) And StartDrawing(ImageOutput(0))
      Box(0, 0, 400, 200, $FFFFFF)

      DrawingMode(#PB_2DDrawing_Gradient)
      BackColor($00FFFF)
      FrontColor($FF0000)

      LinearGradient(0, 0, 200, 200)
      Circle(100, 100, 100)
      LinearGradient(350, 100, 250, 100)
      Circle(300, 100, 100)

      StopDrawing()
      ImageGadget(0, 0, 0, 400, 200, ImageID(0))
    EndIf

    Repeat
      Event = WaitWindowEvent()
    Until Event = #PB_Event_CloseWindow
  EndIf

Supported OS

All
